CS-30QM Waterproof Guest Paging System
Watch Video
Inquiry
Features
- Integrated stacked charging and transmission system with simple and efficient operation
- Adopting Jinchan’s special touch-sensing switch recognition technology for precise power control
- Equipped with an infrared coding technology to ensure stable and anti-interference signal transmission
- Large-capacity wireless paging system supporting numbers 1–9999 (4 digits), expandable configuration, with 10 pagers as standard
- Delivering an efficient power performance, the pager is fully charged in approximately 2 hours, with standby time exceeding 72 hours
- Intelligent charging and battery management system prevents overcharging. The pager utilizes rechargeable batteries to reduce operating costs, with an estimated 5-year battery lifespan and an indicator light for easy replacement.
- Independent ID system allowing multiple systems to operate simultaneously without interference
- Dedicated logo area to support brand customization
- Designed with a safe and durable NiMH lithium battery
- Offers multiple frequency options with 29 selectable frequency bands (409.74–464.637 MHz) to adapt to different environments.
- Wide coverage capability of transmission range up to 3000 meters in an open area, suitable for large multi-story indoor environments.

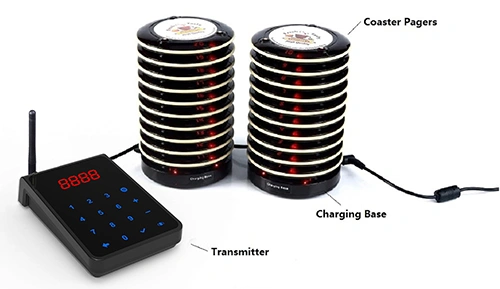

System Components
Inquiry

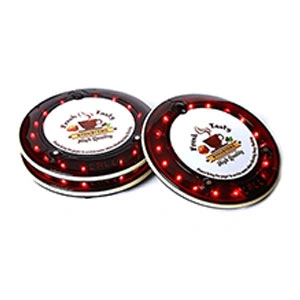

Guest Pager
- Weight: 0.1 kg
- Color: Red wine
- Dimension (Dia.×H): Ø105 × 15 mm
- Alert Mode: Flashing light, vibration, beep
- Logo: Customizable
- LED Display: 4-digit numeric display (0001–9999)
- Material: Imported PC (polycarbonate)
- Low Battery Reminder: "LO" indicator
- Standby Time: >72 hours
Inquiry
Keypad Transmitter
- Weight: 0.7 kg
- Color: Black
- Dimensions (L×W×H): 150 × 96 × 37 mm
- Coding Technology: Infrared coding
- Operation: Touch control
- Transmission Range: >2000 m (open area)
- RF Modulation: Frequency Modulation (FM)
- Paging Capacity: 1–9999
- Material: ABS + PC (polycarbonate)
- Power Supply: 5V/2A
- Display: 4-digit LED display
Inquiry

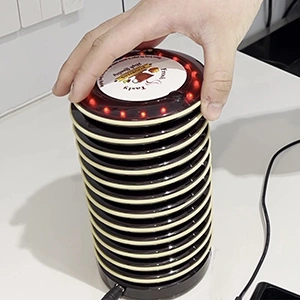

Charging Base
- Weight: 0.2 kg
- Color: Red wine
- Dimension (Dia.×H): Ø105 × 20 mm
- Material: Imported PC (polycarbonate)

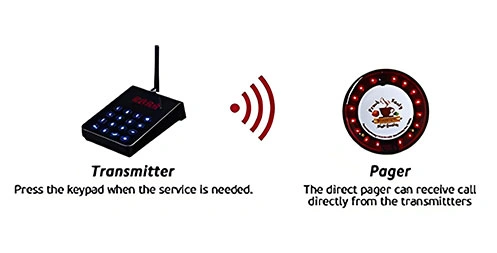

Operating Procedures
- After inputting the order, hand the guest pager to the customer.
- Call the pager using the transmitter when the order is ready.
- Collect the pager after the customer picks up their order.
