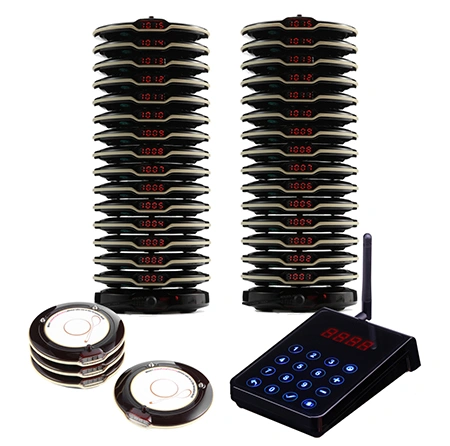

CS-10QM Guest Paging System (Stacked Charging)
CS-10QM guest paging system is a classic and best-selling model under Jinchan. It is widely used in restaurants and self-service environments.
This paging system adopts a stacked intelligent-charging design, improving the efficiency of centralized device management. Unlike conventional guest pagers, the CS-10QM features clear side numbering, allowing quick identification even when stacked or placed on surfaces. This significantly improves pickup and storage efficiency while reducing misplacement and confusion.
Features
- Stacked charging and transmission system with simple and fast operation
- Adopt Jinchan’s touch-sensitive switch technology
- Equipped with Jinchan’s infrared coding technology
- Wireless paging numeric display from 1–99999, with the standard configuration including 10 pagers
- Premium and minimalist appearance with intuitive operation, suitable for first-time users
- Classic round design for a comfortable grip
- Accurate call reception, delivering a high-quality service experience
- Fully charges in approximately 2 hours, with standby time exceeding 72 hours
- Intelligent charging system to prevent overcharging, while the rechargeable battery reduces operating costs (battery lifespan approximately 5 years). It also comes with a clear battery indicator for easy replacement.
- An independent ID system allows multiple sets to operate simultaneously within the same venue without interference
- Dedicated LOGO area for brand customization
- Providing transmission distance up to 1000 meters in an open area, suitable for large indoor and multi-floor coverage
System Components
Inquiry

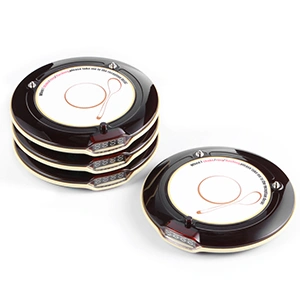

Guest Pager
- Weight: 0.1 kg
- Color: Red wine
- Dimension (Dia.×H): Ø105 × 15 mm
- Alert Mode: Flashing light, vibration, beep
- Logo: Customizable
- LED Display: 4-digit numeric display (0001–9999)
- Material: Imported PC (polycarbonate)
- Low Battery Reminder: "LO" indicator
- Standby Time: >72 hours
- Battery: 600mAh lithium battery
Inquiry
Charging Base
- Weight: 1 kg
- Color: Red wine
- Dimension (Dia.×H): Ø105 × 20 mm
- Material: Imported PC (polycarbonate)
- Type: Charging base
- Compatible Model: CS-10QM
- Power Output Options: 5V/4.5A
Inquiry
Keyboard Transmitter
- Weight: 500 g
- Color: Black
- Dimension (L×W×H): 150 × 96 × 37 mm
- Operational Feedback: Vibration, beep
- Coding Technology: Infrared coding
- Operation: Touch control
- Transmission Range: >3000 m (open area)
- RF Modulation: Frequency Modulation (FM)
- Paging Capacity: 0001–9999 (4 digits)
- Material: ABS + PC (polycarbonate)
- Power Supply: 5V/2A
- Display: 4-digit LED display

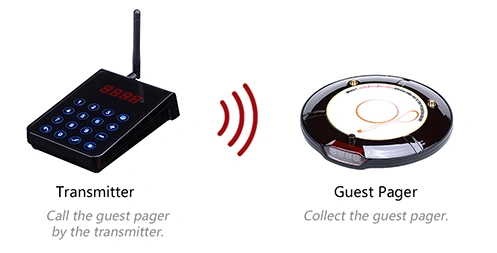

Operating Procedures
- After inputting the order, hand the guest pager to the customer.
- Call the pager using the transmitter when the order is ready.
- Collect the pager after the customer picks up their order.
