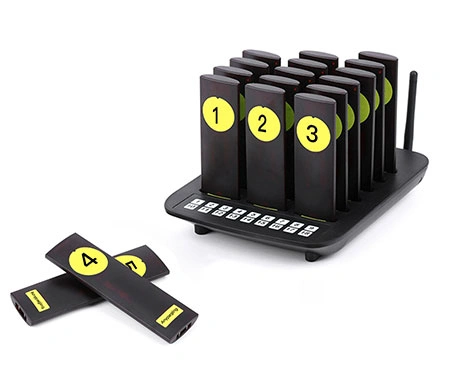

CS-18QM Guest Paging System (Slot-in Charging)
Watch Video
Inquiry
CS-18QM paging system adopts a slot-in charging structure, allowing individual pagers to be inserted and removed independently for centralized management. The pagers support flashing light, vibration, and beeping alerts to ensure pickup notifications are clear and noticeable. Combined with an intuitive and user-friendly keypad transmitter, this paging system is easy to operate and responsive, effectively reducing manual number calling and queue confusion.
Features
- Ultra-Long Standby Time: Standby time exceeds 7 × 24 hours.
- Extended Transmission Distance: Theoretical reception distance exceeds 1000 meters and can penetrate more than 3 floors.
- Intelligent Charging Management: Built-in intelligent charging management system featuring input-output isolation, dedicated charging chip, secondary battery production process, and anti-backflow design for comprehensive battery protection. Equipped with a dedicated LVD chip for low-voltage reset protection. Once the battery level is too low, the device will automatically lock and display “LO,” providing complete battery protection.
- High-Quality Design: Hidden charging contact design using NiMH batteries for reliable performance.
- Multi-Mode Alerts: Equipped with four dedicated red LED indicators, supporting flashing light, buzzer, and vibration alerts.
- Clear Charging Status: Dedicated red LED charging indicator allows users to monitor charging status easily.
- Efficient Centralized Charging: M-line charging solution enables simultaneous charging of 18 pagers.
- Multi-Channel Operation Without Interference: Supports 18 independent channels, ensuring stable operation even in complex environments without cross-channel interference.
- Strong Anti-Interference and High Capacity: Utilizes FM (Frequency Modulation) technology with strong anti-interference capability and long transmission distance, supporting multiple systems transmitting and receiving simultaneously.
System Components
Inquiry
Guest Pager
- Frequency: 433.92 MHz
- Weight: 0.08 kg
- Color: Red wine
- Dimensions: 130 × 38.6 × 12 mm
- Alert Methods: Flashing light, vibration, beep
- Logo: Customization supported
- Theoretical Transmission Range: >1000 m
- Material: Imported PC (polycarbonate)
Inquiry
Keypad Transmitter
- Weight: 1 kg
- Color: Black
- Dimensions: 230 × 170 × 28 mm
- Frequency: 433.92 MHz
- Transmission Range: >1000 m (open area)
- RF Modulation: Frequency Modulation (FM)
- Material: ABS + PC (polycarbonate)
- Power Supply: 5V/2A
- Numeric Buttons: 1–18; 19–36

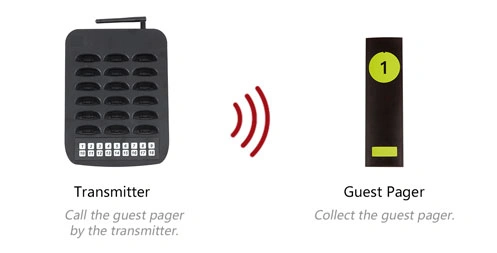

Operating Procedures
- After inputting the order, hand the guest pager to the customer.
- Call the pager using the transmitter when the order is ready.
- Collect the pager after the customer picks up their order.
