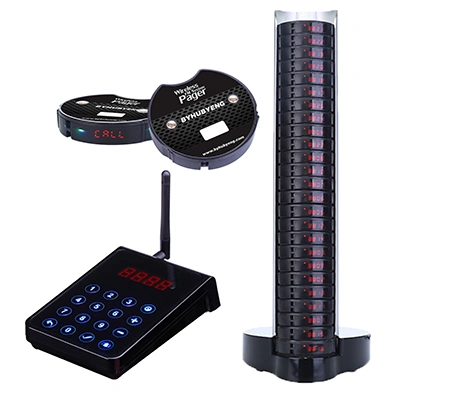

CS-25QM Guest Paging System (15/25 Pagers)
CS-25QM guest paging system integrates guest pagers, a touch-control keypad transmitter, and a stacked intelligent charging base into one solution. The stacked charging structure allows simultaneous charging of 15 or 25 pagers, making it suitable for high-frequency restaurant and self-service environments.
Watch Video
Inquiry
Features
- Guest pagers feature a full waterproof design with IPX67 protection, capable of operating normally 1 meter underwater
- The keypad transmitter is equipped with a 4-digit LED touch display and supports customized gesture-based power control
- Alerts can be triggered via flashing light, buzzer, vibration, or any combination of these modes
- Pager standby time exceeds 72 hours
- Reception range exceeds 3000 meters in an open area and can penetrate more than 10 floors
- Features an integrated intelligent charging management system that protects batteries using input-output isolation, dedicated charging chips, secondary battery protection, and anti-backflow design. It also includes a dedicated LVD chip for low-voltage reset protection; when the battery is low, the pager automatically locks and displays “LO.”
- Supports 99 independent channels, and different channels can operate simultaneously without interference
System Components
Inquiry

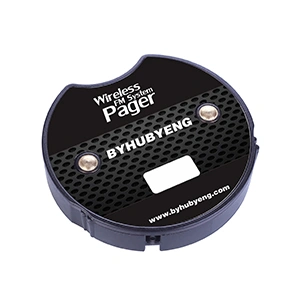

Guest Pager
- Weight: 80 g
- Color: Red wine
- Design: Black color / smiley face version
- Dimension (Dia.×H): Ø80 × 16 mm
- Alert Modes: Flashing light, vibration, beep
- Logo: Customization supported
- LED Display: 4-digit numeric display (0001–9999)
- Material: Imported PC (polycarbonate)
- Standby Time: >72 hours
- Transmission Range: >2000 m
Inquiry
Keypad Transmitter
- Weight: 0.7 kg
- Color: Black
- Dimensions (L×W×H): 150 × 96 × 37 mm
- Coding Technology: Infrared coding
- Operation: Touch control
- Transmission Range: >2000 m (open area)
- RF Modulation: Frequency Modulation (FM)
- Paging Capacity: 1–9999
- Material: ABS + PC (polycarbonate)
- Power Supply: 5V/2A
- LED Display: 4-digit numeric display
Inquiry

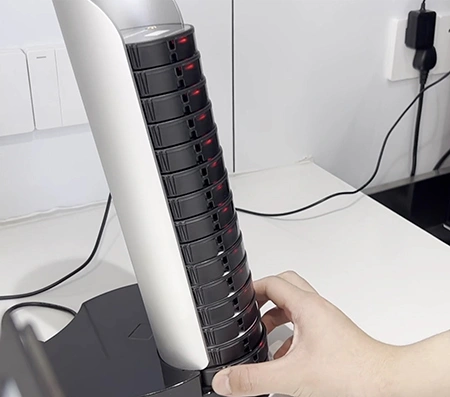

Charging Base
- Weight: 2 kg
- Power Supply: 12V/3A
- Color: Black-silver
- Dimension (Dia.×H): Ø175 × 315 mm
Operating Procedures
- After inputting the order, hand the guest pager to the customer.
- Call the pager using the transmitter when the order is ready.
- Collect the pager after the customer picks up their order.
