YH-5QM Guest Paging System
Watch Video
Inquiry
In high-traffic restaurants and self-pickup environments, manual number calling is inefficient and can easily cause management chaos, which negatively affects the customer experience.

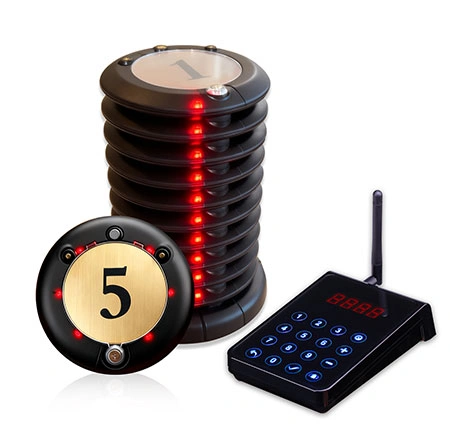

YH-5QM food pickup paging system is a compact and cost-effective solution integrating guest pagers, a touchscreen keypad transmitter, and a stacked intelligent charging base. It comes standard with 10 pagers and is suitable for rapid deployment in small and medium-sized stores. The paging system is easy to operate, space-saving, and effectively improves pickup efficiency and overall service experience.
Features
- Adopted a stacked charging and transmission system with simple and fast operation
- Utilizes a touch-sensitive switch technology
- Equipped with Jinchan’s infrared coding technology
- Wireless paging system capacity is expandable, with a standard configuration of 10 pagers
- Designed with a premium and minimalist appearance with intuitive operation, suitable for first-time users
- Classic round disc design for a comfortable grip
- Accurate call reception to ensure high-quality operations
- Fully charges in approximately 2–3 hours, and standby time exceeds 72 hours
- Intelligent charging system prevents overcharging, with a rechargeable battery to reduce operating cost. The
- pager also features a clear battery indicator for convenient replacement.
- Independent ID system enables multiple systems to operate simultaneously without interference
- Dedicated logo area supports brand customization
- Standard number labels included
- Software function customization is available
- Transmission range up to 800 meters in an open area, suitable for many application scenarios
- Easy operation with clearer and more visible LED display
System Components
Inquiry

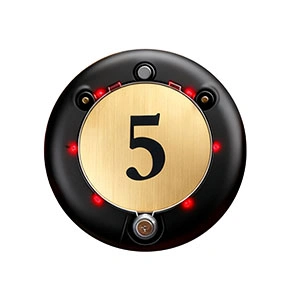

Guest Pager
- Product Type: Restaurant Pager
- Color: Black
- Dimension (Dia.×H): Ø78 × 13 mm
- Weight: 50 g
- Charging Time: 2–3 hours
- Standby Time: 72 hours
- Alert Methods: Flashing light, vibration, beep
- Installation Method: Magnetic stacking
- Battery: Built-in 3.7V lithium battery
- Typical Application: Catering service industry
Inquiry
Charging Base
- Color: Black
- Dimensions (Dia.×H): Ø90 × 18 mm
- Weight: 100 g
- Stackable Quantity: 1–10 units
- Power Supply Input: 5V/2A
Inquiry
Rechargeable Keyboard Transmitter
- Color: Black
- Dimensions: 56.5*95*20 mm
- Weight: 60 g
- Battery capacity: 600mAH
- Transmit Frequency: 433 MHz

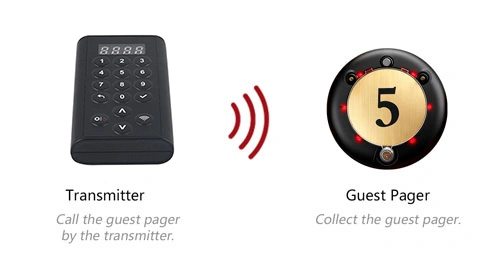

Operating Procedures
- After inputting the order, hand the guest pager to the customer.
- Call the pager using the transmitter when the order is ready.
- Collect the pager after the customer picks up their order.
