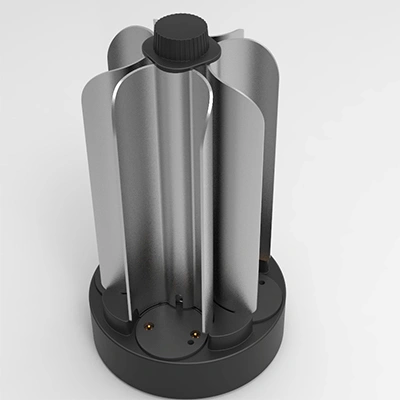

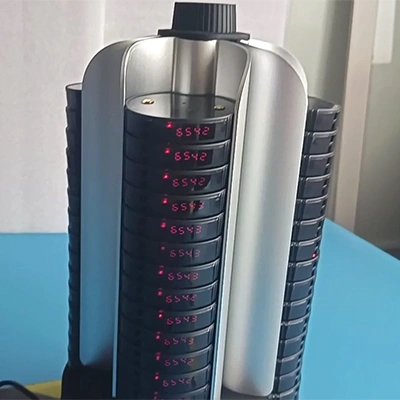

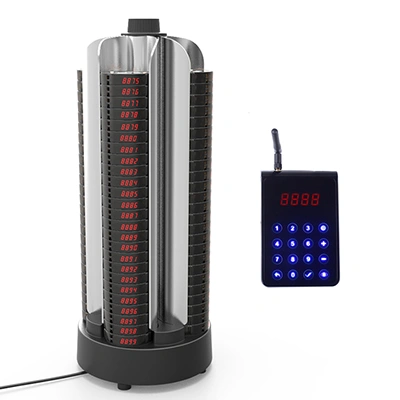

CS-100QM Restaurant Paging System (Up to 100 Pagers)
CS-100QM guest paging system is designed especially for large-scale restaurants, food courts, and high-traffic service requirements. The paging system supports up to 100 guest pagers with centralized stacked charging management, enabling efficient queue control and streamlined order pickup operations.
Watch Video
Inquiry
Features
- Adopts a scientifically designed “First-In, First-Out” stacked charging concept. The battery management and operating frequency are also uniformly configured to maximize device lifespan during use.
- Guest pagers feature full waterproof protection with an IPX67 rating and can operate normally 1 meter underwater
- Equipped with a professional 4-digit (0001 to 9999) red ultra-high-brightness LED numeric display
- Standby time exceeds 72 hours
- Offers more than 3000 meters of transmission area in an open area and can penetrate more than 10 floors
- The built-in intelligent charging management system protects the battery through input-output isolation, a dedicated charging chip, secondary battery protection, and anti-backflow design. A dedicated LVD chip offers low-voltage reset protection. When the battery level is low, the device automatically locks and displays “LO.”
- Dedicated charging indicator light allows users to monitor charging status at any time
- Supports intuitive gesture-based power control recognition technology
- Incorporates advanced infrared coding technology
- Features 99 independent channels that operate simultaneously without interference
- Utilizes FM (Frequency Modulation) technology with strong anti-interference capability, long transmission distance, and support for multiple systems operating simultaneously
- Designed with a lanyard hole for convenient carrying
- Charging contacts utilize a 3U gold-plating process for enhanced conductivity and a high-quality finish
- Equipped with three-color LED indicators (red, green, and blue), supporting buzzer and vibration alerts.
System Components
Inquiry

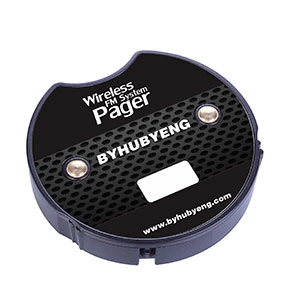

Guest Pager
- Weight: 80 g
- Design: Black color / smiley face version
- Dimension (Dia.×H): Ø80 × 16 mm
- Alert Modes: Flashing light, vibration, beep
- Logo: Customization supported
- LED Display: 4-digit numeric display (0001–9999)
- Material: Imported PC (polycarbonate)
- Standby Time: >72 hours
- Transmission Range: >2000 m
Inquiry
Keypad Transmitter
- Weight: 0.7 kg
- Color: Black
- Dimensions (L×W×H): 150 × 96 × 37 mm
- Coding Technology: Infrared coding
- Operation: Touch control
- Transmission Range: >2000 m (open area)
- RF Modulation: Frequency Modulation (FM)
- Paging Capacity: 1–9999
- Material: ABS + PC (polycarbonate)
- Power Supply: 5V/2A
- LED Display: 4-digit numeric display
Inquiry

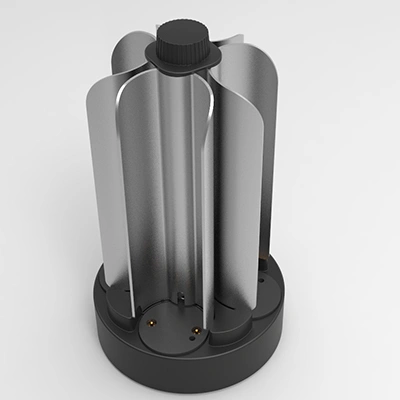

Charging Base
- Weight: 2 kg
- Power Supply: 12V/10A
- Color: Black-silver
- Dimension (Dia.×H): Ø175 × 315 mm
- Material: ABS + aluminum

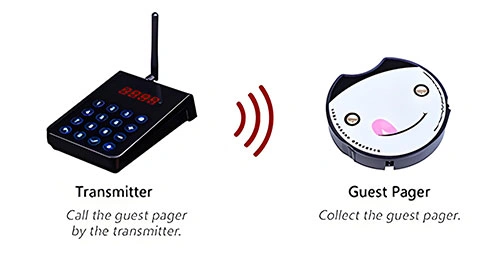

Operating Procedures
- After inputting the order, hand the guest pager to the customer.
- Call the pager using the transmitter when the order is ready.
- Collect the pager after the customer picks up their order.
