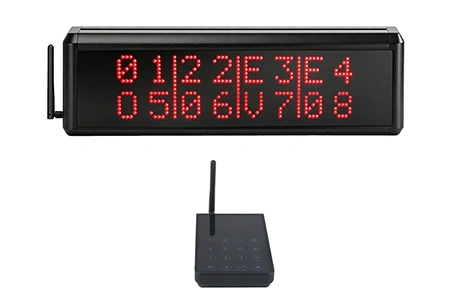

CS-9QM Wireless Queuing System

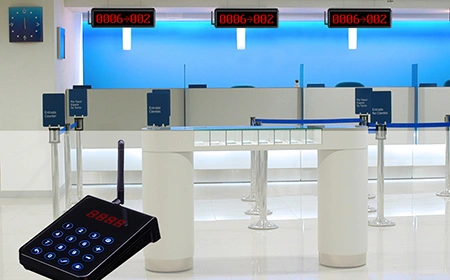

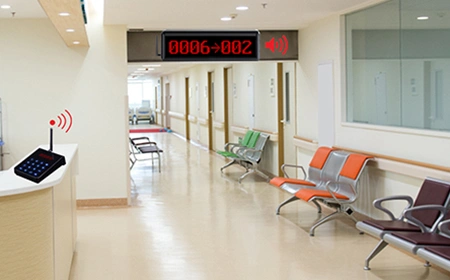

9QM queue calling system consists of a large-sized display receiver (430×118×30 mm) and a transmitter keyboard. It is designed for hospitals, banks, and government service halls. The display receiver features an aluminum alloy housing with solid structure and a premium appearance, suitable for long-term continuous operation.
System Components
Inquiry

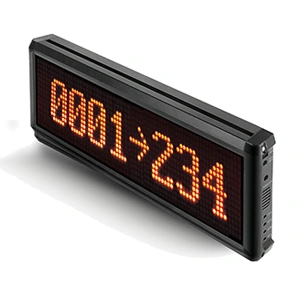

Display Receiver
- Dimensions (L×W×H): 430 × 118 × 30 mm
- Weight: 1500 g
- Material: Aluminum alloy shell
- Power Supply: 12V/1A
- Display Mode: 2
- Volume Adjustment: 0–9 levels
- Mounting Method: Desktop placement/wall mounting
Inquiry
Transmitter Keyboard
- Dimensions: 150 × 97 × 36 mm
- Shell Material: ABS + PC (polycarbonate)
- Operation: Touch control
- Weight: 200 g
- Power Supply: 5V/2A
- Transmission Range: >200 m
- LED Display: 4-digit numeric display (0001–9999)
